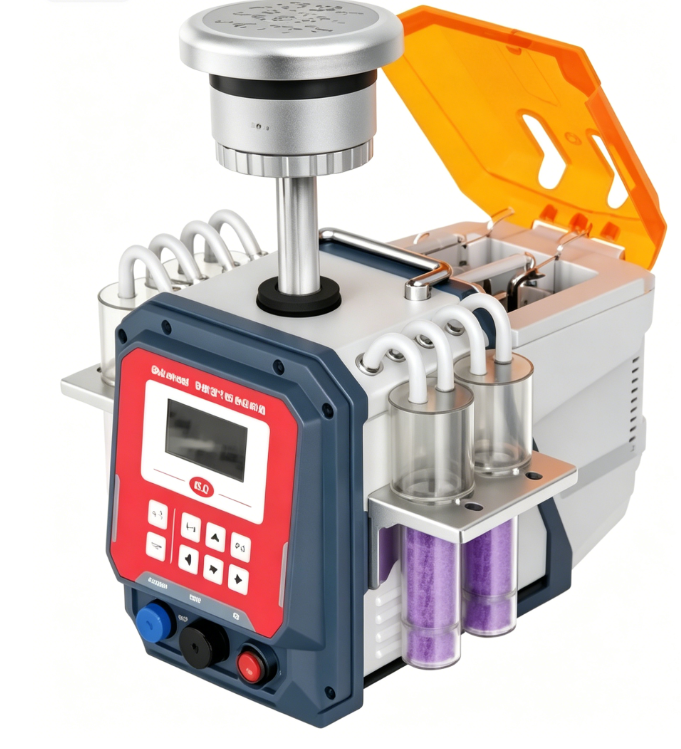

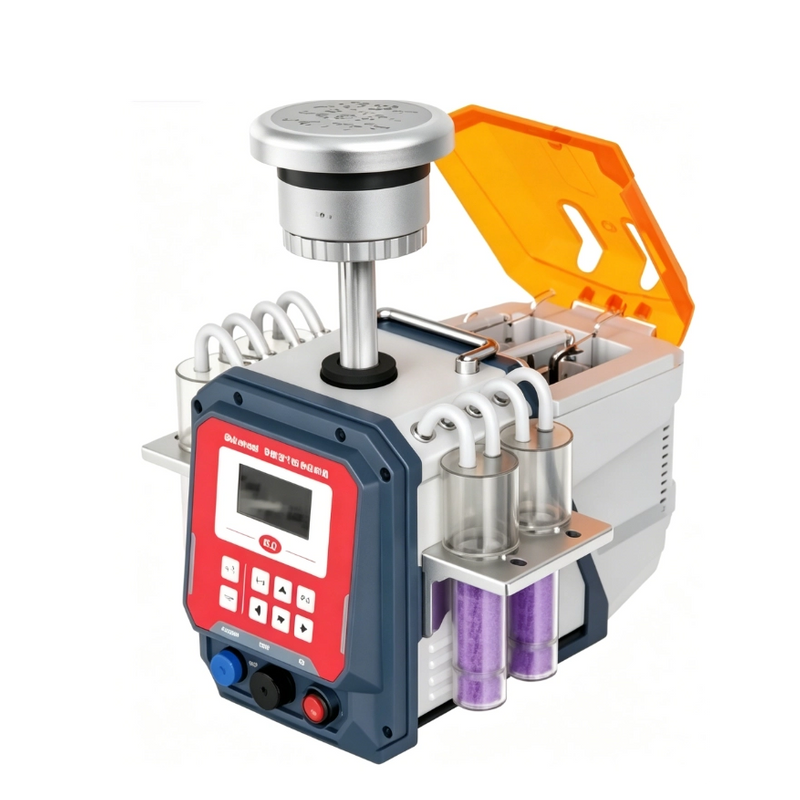

LY‑2050 is a multi‑functional thermostatic environmental air comprehensive sampling device. It uses the filter membrane weighing method to collect total suspended particulate (TSP) and inhalable particulate matter (PM10), with optional PM2.5 monitoring. It adopts the solution absorption method to capture gaseous pollutants such as SO₂ and NOₓ in ambient and indoor air, and also supports VOC sampling via solid‑phase adsorption tube. Equipped with an integrated constant‑temperature incubator and multi‑channel independent control system, it is widely used in environmental protection, public health, occupational safety, scientific research and education for routine and emergency air monitoring.
Adopts five independent gas sampling paths, each with adjustable flow and special constant‑flow control, ensuring stable and accurate sampling.
Works as a 4‑channel ambient air sampler and a particulate sampler (TSP/PM10/PM2.5 optional) at the same time, realizing one‑machine multi‑purpose.
Built‑in constant‑temperature chamber can hold four absorption bottles, with adjustable temperature control to ensure constant‑temperature sampling and improve collection efficiency.
Equipped with high‑precision corrosion‑resistant electronic flowmeter for automatic flow control and real‑time parameter tracking.
Adopts high‑performance core pump with ultra‑low noise, corrosion resistance, overload protection and maintenance‑free long‑term operation.
Built‑in lithium battery supports AC/DC dual power supply; large data storage, query, print and USB export functions.
Automatically measures atmospheric pressure, ambient temperature and other parameters to ensure traceable sampling data.
Supports self‑inspection, fault alarm, timing, positioning, anti‑counterfeiting printing and log recording, with information system docking interface.
GB/T 18883-2022 Indoor Air Quality Standard
nGB/T 39193-2020 Environmental Air – Determination of Particle Matter Mass Concentration – Gravimetric Method
GB 50325-2020 Standard for Control of Indoor Environmental Pollution in Civil Construction Projects
HJ 93-2013 Technical Requirements and Testing Methods for Ambient Air Particulate Matter (PM10 and PM2.5) Samplers
HJ/T 374-2007 Technical Requirements and Testing Methods for Total Suspended Particulate Matter Samplers
HJ/T 375-2007 Technical Requirements and Testing Methods for Environmental Air Samplers
HJ 618-2011 Determination of PM10 and PM2.5 in Ambient Air – Gravimetric Method
HJ 644-2013 Determination of Volatile Organic Compounds in Ambient Air: Adsorption Tube Sampling – Thermal Desorption Gas Chromatography – Mass Spectrometry
HJ 645-2013 Environmental Air – Determination of Volatile Halogenated Hydrocarbons: Activated Carbon Adsorption-Carbon Disulfide Desorption/Gas Chromatography Method
HJ 683-2014 Environmental Air – Determination of Aldehydes and Ketones – High Performance Liquid Chromatography Method
HJ 1263-2022 Environmental Air – Determination of Total Suspended Particulate Matter by Weighing Method
JJG 943-2011 Total Suspended Particulate Matter Sampling Device
JJG 956-2013 Atmospheric sampler
Main Parameter | Parameter Range |
Particulate Matter Sampling Flow Rate | Maximum no-load flow rate: 150 L/min; operating flow rate is customizable. |
Atmospheric Sampling Flow Rate | Standard setting (0–1.0) L/min The C/D channel is customizable (10–200) mL/min |
Dwell Time | Any setting within 99 hours and 59 minutes |
Temperature Before The Flow Meter | （-30~99）℃ |
Pressure Before The Flowmeter | （-45~0）kPa |
Thermostatical Control | （15~30）℃ |
Atmos | （50~130）kPa |
Ambient air quality monitoring & grid monitoring
Indoor air quality detection (office, home, public place)
Environmental protection bureaus & third‑party testing institutions
Public health, occupational health & safety supervision
Scientific research institutes & education laboratories
Emergency air pollution monitoring & VOC sampling
Lonying is a professional manufacturer of ambient air monitoring equipment with rich R&D and production experience. LY‑2050 integrates particulate sampling, gaseous pollutant collection and VOC sampling, with stable performance, simple operation and full compliance with national standards. We provide professional training, on‑site guidance, calibration support and after‑sales service to help users complete accurate and efficient air sampling.
FAQs
Yes. It has a built‑in constant‑temperature incubator that can hold four absorption bottles and supports 15–30℃ temperature control.
Yes. It supports simultaneous sampling of TSP/PM10/PM2.5 and multi‑component gaseous pollutants.
Yes. It can perform solid‑phase adsorption sampling of VOCs in ambient air, matching standard methods.
It supports five independent gas sampling paths and can work as a 4‑channel air sampler + particulate sampler.
