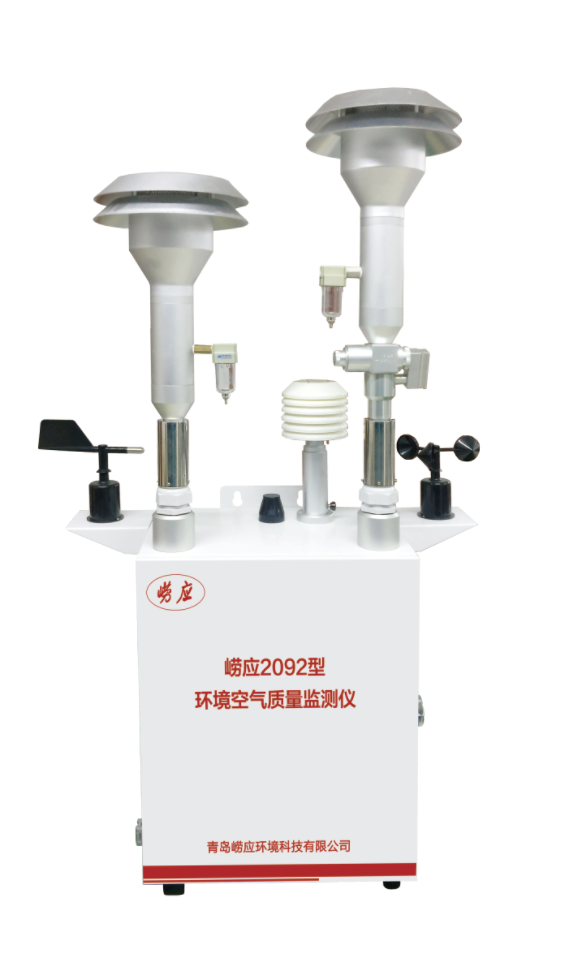

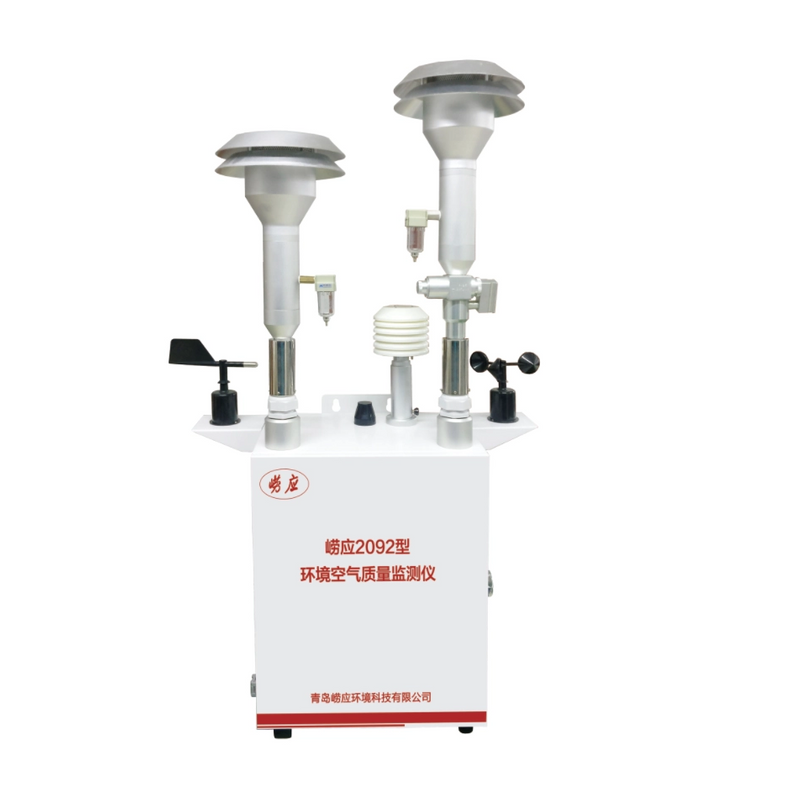

LY-2092 is an all-weather outdoor automatic ambient air quality monitoring terminal for real-time online monitoring. It measures PM2.5, PM10, O3, SO2, CO, NO2, TVOC and five meteorological parameters including temperature, humidity, atmospheric pressure, wind direction and wind speed. Particulate monitoring uses dual-channel beta-ray absorption method for simultaneous PM2.5/PM10 detection. Gaseous pollutants adopt electrochemical sensors and PID detection technology. With stainless steel structure, IP55 protection, industrial-grade circuit and wide-temperature design, the instrument runs stably in complex outdoor environments and supports 4G remote data transmission, remote control and fault diagnosis. It is widely used in urban grid monitoring, industrial zones, road traffic and construction site dust supervision.
Adopts dual-channel beta-ray absorption method to realize simultaneous real-time monitoring of PM2.5 and PM10 with high stability, no seasonal correction and full-day accurate data output.
Equipped with dynamic heating system (DHS) and real-time temperature-humidity compensation, effectively ensures accurate measurement of semi-volatile nitrates and organic compounds.
Uses four-electrode high-precision electrochemical sensors and imported PID sensor for TVOC. Supports on-site standard gas calibration, automatic and manual zero calibration, with strong anti-interference and low drift.
Integrates particulate matter, six types of gaseous pollutants and five meteorological parameters in one unit. Modular design supports free combination and large-scale grid-based deployment.
Made of stainless steel with IP55 dustproof and splash-proof rating. Industrial-grade embedded processor supports wide temperature operation from -40°C to 70°C.
Built-in 4G DTU for data upload compliant with HJ 212-2017. Supports remote status query, remote control, parameter modification, fault diagnosis and FTP remote program upgrade.
Built-in lithium battery ensures data recording and reporting during power failure. Automatically saves data when power off and resumes sampling after recovery. Supports up to 365 days data storage and USB drive export.
Adopts single-pump dual-path sampling with simultaneous sampling and detection at the same position, fundamentally eliminating errors caused by moving filter tape.
HJ 653-2013 Technical Requirements and Testing Methods for Continuous Automatic Monitoring Systems of Particulate Matter (PM10 and PM2.5) in Ambient Air
HJ 1100-2020 Technical Guidelines for Automatic Monitoring of Particulate Matter (PM10 and PM2.5) in Ambient Air Using the Beta-Ray Method
HJ 212-2017 Data Transmission Standard for Online Monitoring Systems of Pollution Sources
Technical parameters for particulate matter | |
Main Parameter | Parameter Range |
Measuring Range | ( 0~10000） μg/m3 |
Indicating Error | ±10% |
Sampling Flow Rate | 16.67L/min |
Detectability | 1μg/m3 |
Particle Separation Device | Impact cutter, cyclone cutter (PM2.5) |
Resolution Ratio | 0.1μg/m3 |
Consistent with the linear regression of the reference method | Slope: 1 ± 0.15 |
Intercept: (0±10) μg/m³ | |
Correlation ：≥0.95 | |
Calibration Method | Standard Membrane Calibration |
Temperature Control | The temperature range (0–60) °C is adjustable, with a control accuracy of ±1 °C. |
Data Storage | It can store one year of data and supports exporting data from USB drives. |
Paper Tape | Fiber glass paper tape |
Working Power Supply | AC（220±22）V，50Hz |
Ambient Temperature | (-30~50)℃ |
Ambient Humidity | (0~95)%RH |
Host dimensions (Length × Width × Height) | 470mm×400mm×280mm |
Pump housing (Length × Width × Height) | 350mm×300mm×210mm |
Body Weight | 20kg |
Pump Housing Weight | 15kg |
Technical Parameters for The Gaseous Factor Technology | |||
Main Parameter | Parameter Range | Resolution Ratio | Accuracy |
SO₂ (Electrochemical Method) | （0~1000）ppb | 1ppb | Reading error: no more than ±5% Repeatability: no more than ±2% Stability: No more than ±5% |
NO2 (Electrochemical Method) | （0~1000）ppb | 1ppb | |
CO（ Electrochemical Method） | （0~20000）ppb | 1ppb | |
O3 (Electrochemical Method) | （0~1000）ppb | 1ppb | |
Technical Parameters for The Gaseous Factor Technology | |||
Main Parameter | Parameter Range | Resolution Ratio | Accuracy |
TVOC (PID method) | (0~40000)ppb | 1ppb | Reading error: no more than ±1% Repeatability: no more than ±1% Zero drift: no more than ±0.5% FS Range drift: no more than ±1% FS |
Meteorological Technical Parameters | |||
Main Parameter | Parameter Range | Resolution Ratio | Accuracy |
Temperature | （-50~100）℃ | 0.1℃ | ±0.5℃ |
Humidity | （0~100）%RH | 0.1%RH | ±3%RH |
Wind Direction | （0~360）° | ±0.1° | ±3° |
Wind Speed | （0~70）m/s | 0.1m/s | ±（0.3＋0.03V）m/s |
Atmos | （10~1100）hpa | 0.1hpa | ±0.3hpa |
Urban ambient air quality grid monitoring
Industrial parks and factory boundary supervision
Road traffic air pollution monitoring
Construction site dust and dustfall monitoring
Smart city environmental monitoring system
Environmental protection bureaus and third-party testing institutions
Regional ecological environment assessment and early warning
Lonying is a professional manufacturer dedicated to ambient air quality monitoring and fixed pollution source detection equipment. LY-2092 dual-channel monitor integrates mature beta-ray method, electrochemical sensing and PID technology, with stable performance, high precision and full standard compliance. We provide customers with one-stop services including instrument training, on-site guidance, calibration support and after-sales maintenance, helping users achieve long-term reliable operation and efficient environmental data management.
FAQs
Yes, it uses dual-channel beta-ray absorption method and dual detectors to monitor PM2.5 and PM10 at the same time.
Yes. It features IP55 protection, stainless steel structure and wide-temperature design, stable operation under various outdoor environments.
Yes. Built-in 4G DTU supports remote data upload, status query, parameter setting, fault diagnosis and remote upgrade.
Yes. It supports temperature, humidity, wind direction, wind speed and atmospheric pressure with high-precision sensors.
It can store up to 365 days of monitoring data and supports one-click export via USB drive.
