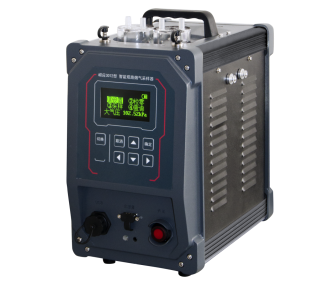

LY-3072 Intelligent Dual-channel Flue Gas Sampler Type 18 is a professional stack gas sampling instrument for stationary pollution sources. It adopts solution absorption method to efficiently collect harmful gases such as SO₂ and NOₓ from exhaust gas. The instrument supports dual-channel independent control, real-time monitoring of flue gas temperature, pressure, velocity and flow rate, with stable performance and long running time. It is widely used in environmental protection, third-party testing, industrial and mining enterprises, public health, safety supervision, scientific research and education fields.
Dual-channel flexible sampling design, each channel can be controlled independently, stable flow, high load capacity, ensuring long-term reliable operation.
Simultaneously measure dynamic pressure, static pressure, total pressure, flue gas temperature, velocity, flow rate and standard dry flue gas flow rate.
Supports data storage, query, printing and export, convenient for on-site testing and report output.
Built-in lithium battery supports long-time field operation without external power supply.
Optimized human-machine interface, easy to operate, in line with on-site usage habits.
Fully meets national and industrial standards for flue gas sampling, with high accuracy and good stability.
GB/T 16157-1996 Methods for the Determination of Particulate Matter and Sampling of Gaseous Pollutants in Emissions from Stationary Pollution Sources
HJ/T 47-1999 Technical Specifications for Flue Gas Samplers
HJ/T 397-2007 Technical Specifications for Monitoring Waste Gas from Stationary Sources
JJG 1169-2019 Verification Regulation of Flue Gas Samplers
Main Parameters | Range |
Sampling Flow Rate | (0.2～1.5) L/min |
Inlet Temperature | (－55～125)℃ |
Inlet Pressure | (－25～0)kPa |
Atmospheric Pressure | (50～130)kPa |
Flue Gas Dynamic Pressure | (0～2000)Pa |
Flue Gas Static Pressure | (-30～+30)kPa |
Flue Gas Temperature | (0～500)℃ |
Flue Gas Velocity | (1～45)m/s |
Environmental protection bureaus & third-party testing institutions
Power plants, steel, cement, sugar, paper, smelting, ceramics
Boilers, kilns, industrial furnaces
Aluminum, magnesium, zinc, titanium, silicon, pharmaceutical
Fertilizer, chemical, rubber, material manufacturing
Public health, safety production, military, scientific research
Dual independent channels, high efficiency & flexible sampling
One machine completes multi-parameter monitoring & gas sampling
Built-in battery for outdoor & field use
Stable flow, long service life, low maintenance
Fully compliant with national standards, suitable for law enforcement & testing
Yes, dual-channel design, each channel can be set and run independently.
Yes, built-in lithium battery supports long-time field operation.
It uses solution absorption method for SO₂, NOₓ and other acidic & harmful flue gases.
Yes, supports data storage, query, printing and export.
