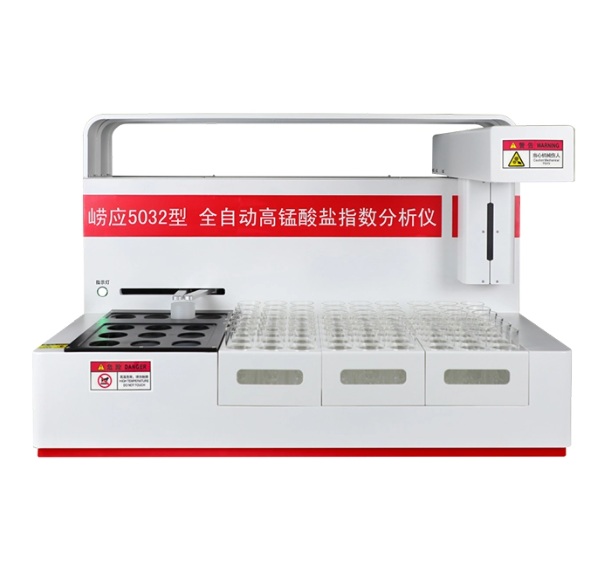

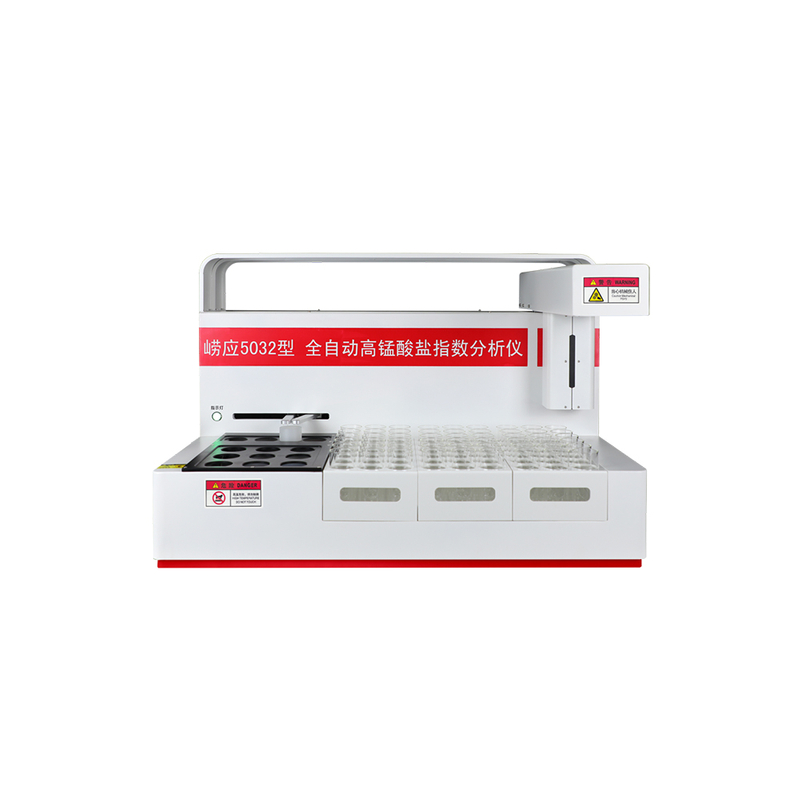

The LY-5032 Automatic Permanganate Index Analyzer is a professional, high-throughput analytical instrument purpose-built for accurate determination of permanganate index (CODₘₙ value) in aqueous samples. Based on the classic redox titration principle, it uses potassium permanganate to oxidize reducing substances in acidic/alkaline solutions, then back-titrates excess potassium permanganate with sodium oxalate standard solution, with results directly quantified by potassium permanganate consumption. Designed for professional industrial users and testing organizations, this analyzer delivers fully automated, high-precision CODₘₙ testing, eliminating manual errors and drastically improving laboratory testing efficiency.
This CODₘₙ water quality analyzer adopts fully integrated automation technology, realizing one-click detection from sample digestion to titration result output, with full unattended operation. The intelligent electronically controlled robotic arm enables stable, high-precision sample cup transfer, high-temperature grasping and titration, completely replacing manual intervention for full-process automation.
Equipped with high-resolution RGB visual sensors simulating human eye recognition, the system automatically judges the titration endpoint via real-time color change monitoring, delivering accurate and reliable endpoint identification with precision RSD ≤ 3.0% (3.0 mg/L glucose standard solution, n=3).
The system features independent metering for 4 types of testing reagents, with real-time reagent consumption monitoring and low-level early warning, ensuring test validity and avoiding invalid experiments caused by reagent shortage.
The built-in data workstation displays a real-time sample position schematic, supporting free sample cancellation, addition or replacement during operation without stopping the process, greatly improving batch testing flexibility.
The LY-5032 automated permanganate index testing system fully complies with relevant monitoring standards and regulations issued by the Ministry of Ecology and Environment of China, as well as applicable international water quality testing standards. It has obtained official CPA certification (China Environmental Protection Product Certification), ensuring test data is legally valid and meets regulatory requirements for environmental supervision and third-party testing.
Main Parameters | Specification Range |
Sample Tray Capacity | 54 positions |
Heating Method | Water bath heating, 9 digestion positions, intelligent multi-stage temperature control |
Titration Channels | Dual channels |
Titration Endpoint Identification | RGB color recognition |
Measurement Precision | RSD ≤ 3.0% (3.0 mg/L glucose standard solution, n=3) |
Measuring Range | 0 – 6.0 mg/L (without dilution, 100 mL sample volume) |
Single Sample Analysis Speed | ≤ 4 minutes |
Temperature Control Accuracy | ±1°C |
Reagent Monitoring | 4 reagents, real-time level display |
Robotic Arm Drive | Electronic control |
Dimensions (L × W × H) | 1070mm×240mm×140mm |
Power Consumption | < 2000W |
Power Supply | AC (220±22)V, 50Hz |
Surface Water & Drinking Water Source Monitoring: For routine water quality assessment of rivers, lakes, reservoirs and drinking water sources by environmental monitoring stations and water resource management departments, evaluating organic pollution to support water quality classification and source water protection.
Environmental Supervision & Emergency Monitoring: For environmental regulatory authorities to monitor enterprise discharge outlets and wastewater treatment plant effluent, meeting enforcement, supervisory and emergency monitoring needs for sudden water pollution incidents.
Water Treatment Process Control: For water treatment plants to monitor influent, process water and finished water, guiding optimization of coagulation, disinfection and other process parameters to ensure stable effluent compliance.
As a professional manufacturer of environmental monitoring equipment, Lonying delivers high-reliability instruments with long maintenance cycles, designed for long-term stable operation in professional testing scenarios. The instrument supports intuitive touch screen and remote operation, with user-friendly monitoring software. We provide comprehensive pre-sales consultation, detailed operation training, complete O&M manuals and full after-sales support, ensuring seamless deployment and stable operation for professional users.
It is designed for permanganate index testing of surface water, drinking water, source water and treated wastewater effluent, ideal for routine and regulatory testing of water samples with low to medium organic pollution levels.
Yes. The LY-5032 fully complies with China’s national environmental monitoring standards and relevant international norms, with CPA certification, ensuring test data is legally valid for regulatory and third-party testing.
No. It features an intuitive intelligent touch screen and remote operation, with user-friendly software. We provide detailed operation training and a complete maintenance manual, and the equipment has a long maintenance cycle with low daily maintenance requirements.
