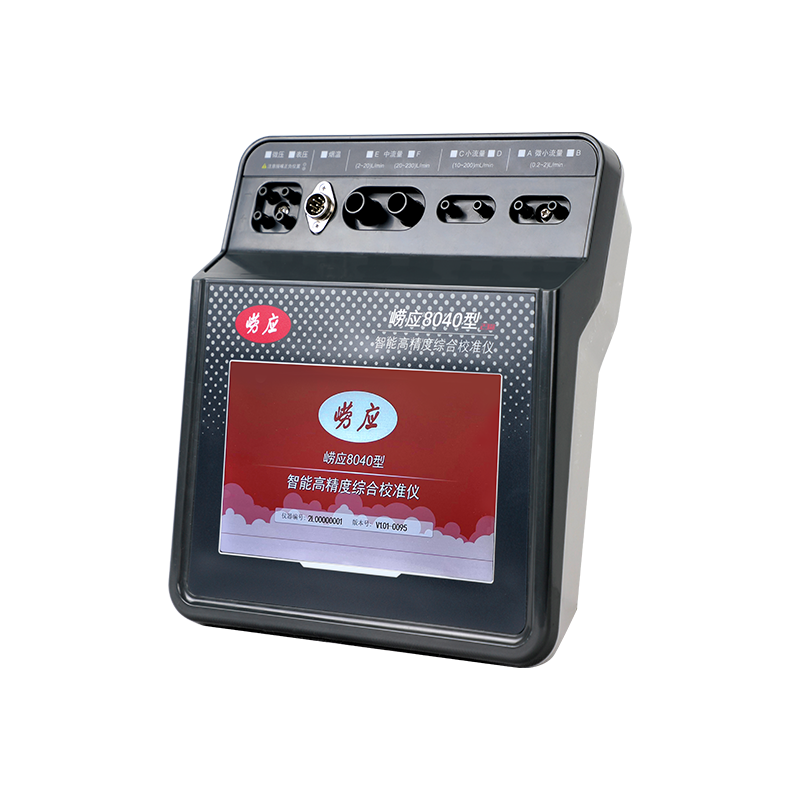

LY-8040 Intelligent Flow/Pressure/Temperature/Humidity Calibrator is an all-in-one, high-precision portable calibrator designed for integrated calibration of micro pressure, gage pressure, temperature, humidity and flow. It realizes multi-range flow detection, automatic pressure control, flue temperature verification and wet-dry bulb calibration in one machine, with high accuracy, portable structure and built-in lithium battery for cordless working. It is widely used for calibration of dust samplers, flue gas analyzers and other environmental monitoring instruments, providing efficient and compliant calibration solutions for environmental protection, metrology, safety supervision, scientific research and other fields.
This intelligent calibrator integrates flow, micro pressure, gage pressure, temperature and humidity calibration into one compact unit. It supports micro flow, low flow, mid flow and big flow measurement across full ranges, and realizes simultaneous multi-channel flow calibration. It is equipped with PT100 flue gas temperature calibration (0℃ to 400℃) and wet-dry bulb calibration function, meeting full-scenario calibration needs of various sampling and monitoring instruments.
The instrument adopts high-sensitivity sensing modules and automatic pressure boosting technology, with micro pressure tolerance within ±1Pa and gage pressure tolerance within ±0.1kPa. It supports automatic conversion of standard condition, reference condition and environmental flow, and provides high-accuracy calibration data with stable and reliable performance. It is supplied with authoritative metrology calibration certificate to ensure traceability and compliance.
Built-in 8-inch large color touch screen provides clear data display and intuitive human-machine interaction. It supports voice broadcast, one-key calibration, data storage, query, wireless printing and USB export. The whole machine features horizontal ergonomic design, built-in high-capacity lithium battery for more than 8 hours working, mold-injected lightweight body, easy to carry and use indoors and outdoors.
It supports multiple optional modules including soap film flowmeter, roots flowmeter, portable Bluetooth printer and one-click calibration communication cable. Equipped with electronic tag, it can connect with instrument management platform to realize intelligent asset management. The system supports password protection, factory reset and software upgrade via USB, ensuring stable and long-term use.
The LY-8040 Intelligent Calibrator is designed and produced in full compliance with relevant national metrological verification regulations and environmental protection technical specifications. It fully meets
HJ/T 368-2007 Technical requirements and test methods for orifice flowmeter used in calibration of total suspended particulate matter sampler
JJG 640-2016 Differential pressure flowmeter
JJG 875-2019 Digital manometer
It supports metrological calibration and traceability, and is suitable for use in environmental monitoring stations, third-party laboratories, metrology institutions and industrial enterprises.
Main Parameter | Parameter Range |
Minimum Focus Distance | ≤0.5m |
Camera Lens | The standard lens is 14.5° x 10.8°, and other lenses can be customized |
Digital Zoom | Continuous zoom (1.0X~32.0X) |
Thermal Sensitivity (NETD) | ≤10mK@25℃ |
Frame Rate | 30Hz |
Detector | The refrigerated (T2SL) type II superlattice detector, resolution of 320 x 256 |
Working Band | （3.2~3.5）µm |
Start-up Time | ≤5min |
Measuring Temperature Range | （-20~+350）℃ |
Temperature Measurement Accuracy | ±1°C (below 100 °C), ±2% (> 100 °C) |
Temperature Measurement Mode | Maximum temperature, minimum temperature, central temperature; can track the maximum temperature, Support movable points, lines, and polygon areas, where the highest and lowest temperatures can be set within the area |
Temperature Measurement Correction | Radiation rate, ambient temperature, ambient humidity, distance, atmospheric transmittance correction |
Laser Indication | Level 2, wavelength 635nm, red laser, power 1mw |
Laser Ranging | It has the function of distance measurement, the distance is more than 1.5km, and the distance value can be displayed on the screen |
Touch Screen | Rotatable color touch display 5.5 inches (1920 x 1080 pixels) |
Viewfinder | OLED (1920 x 1080 pixels) |
Visible Light | Built-in 16 megapixel visible light camera |
Color Palettes | There are 12 preset color schemes such as white heat, black heat, iron red and rainbow, and 6 custom color palettes |
Image Mode | Visible light mode, standard infrared mode, dual light fusion mode, edge enhancement mode |
Removable Memory Card | TF card, 512G, expandable, support hot plug and unplug |
Positioning | Location information can be displayed on the screen |
Weight | 2.6kg |
Battery | The built-in lithium battery can be replaced. A single battery can be used for no less than 4 hours at normal temperature |
Charge | Supports direct charging of the main unit and battery charging, and supports dual-position charging with fast charging protocol |
Hand Shank | Rotatable Angle 270° |
Detectable Gases | Methane, Benzene, Toluene, Xylene, Ethylbenzene, Methanol, Ethanol, Ethane, Propane, Butane, Pentane, Hexane, Heptane, Octane, Ethylene, Propylene, 1-Pentene, Isoprene, Butanone, Methyl Isobutyl (Methyl) Ketone, Methyl Isobutyl Ketone, etc |
This high-precision intelligent calibrator is widely used in environmental protection, metrology verification, sanitation, labor safety supervision, military, scientific research and education fields. It is mainly used for calibration of dust samplers, flue gas analyzers, gas recovery detectors, flow meters and various environmental monitoring instruments. It is an essential equipment for environmental protection agencies, third-party testing laboratories, industrial and mining enterprises, power plants, steel plants, chemical plants and metrology institutions to complete accurate calibration and daily verification.
Lonying is a professional manufacturer of environmental monitoring and calibration instruments with mature R&D, production and service system. The LY-8040 calibrator features high integration, high accuracy, portable design and stable performance, widely recognized by global users. We provide customized calibration schemes, professional operation training, complete after-sales support and 12-month quality warranty. All instruments are strictly tested and calibrated before delivery, ensuring reliable performance and long service life.
It can calibrate dust samplers, flue gas analyzers, gas recovery detectors, various flow meters, pressure meters and temperature/humidity instruments, covering flow, pressure, temperature and humidity parameters.
Yes. It is equipped with a high-energy built-in lithium battery, supporting continuous working for no less than 8 hours without external power supply, suitable for on-site mobile calibration.
Yes. It has built-in data storage, query and export functions, and supports matching with portable Bluetooth printer for wireless data printing.
