Advantages of GFC-NDIR over Conventional NDIR

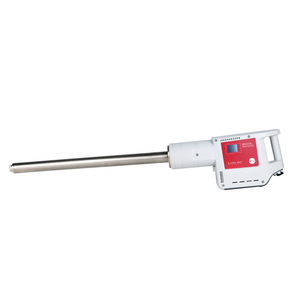

Lonying has launched a brand-new hot-wet flue gas analyzer adopting the GFC-NDIR principle-LY-3021Portable Infrared Flue Gas Analyzer .It features outstanding long-term stability and superior resistance to gas cross-interference, fully complying with the requirements of the standard. This all-in-one unit enables simultaneous measurement of multiple flue gas components, including conventional pollutant gases and greenhouse gases, perfectly meeting customers’ diverse testing demands.

GFC-NDIR (Gas Filter Correlation Non-Dispersive Infrared) outperforms conventional NDIR through fundamental optical design innovations, delivering superior stability and cross-interference immunity for compliance monitoring under stringent emission standards.

1. Superior Long-Term Stability: Zero-Drift Mitigation at Source

Conventional NDIR systems suffer from inherent zero drift caused by:

· IR source aging & luminous flux decay

· Electronic component drift

· Optical cell fouling by moisture, condensable particulate matter (CPM), and contaminants

GFC-NDIR eliminates these issues via its dual-gas-cell rotating modulation architecture:

· A reference cell​ filled with pure N₂ (non-absorbing)

· A correlation cell​ filled with high-concentration target gas

Both cells share identical optical paths and environmental exposure; thus, common-mode disturbances (light attenuation, component drift, cell contamination) affect both beams equally. Concentration is calculated from the differential signal, automatically cancelling out these interferences.

✅ Result: Calibration interval extended from 1 week–1 month (conventional NDIR)​ to 6–12 months.

2. Exceptional Cross-Sensitivity Immunity: Three-Tier Rejection System

Conventional NDIR relies solely on optical bandpass filters, which have finite bandwidth and cannot resolve spectral overlap. For example, CO absorbs at 4.6 μm, while CO₂ exhibits a strong absorption peak at 4.3 μm and a significant side lobe at 4.6 μm—leading to positive bias in CO readings. Such spectral crosstalk is unavoidable in conventional designs.

GFC-NDIR employs a proprietary three-tier interference rejection system:

· Primary: Optimized optical filtering​ – Initial wavelength screening to minimize baseline interference.

· Core: Gas Filter Correlation (GFC) cell​ – The correlation cell is charged with high-purity target gas, achieving 100% spectral matching​ with the target analyte’s absorption lines. It selectively absorbs only the target wavelength energy while transmitting all others, effectively letting “the gas select its own signal.” This single stage removes >80% of residual spectral interferences.

· Tertiary: Advanced algorithmic correction​ – Final compensation for minor residual spectral overlap and ubiquitous water vapor interference across all measurement channels.

3. Additional Operational Benefits

· Compact modular design: Enables simultaneous multi-gas monitoring (criteria pollutants + GHGs) in a single portable unit.

· Compliance-ready: Fully meets HJ 1473-2026 interference requirements (≤5% FS deviation under specified interference gas concentrations).

· Reduced TCO (Total Cost of Ownership): Eliminates need for multiple analyzers, minimizes field calibration frequency, and lowers maintenance overhead.
