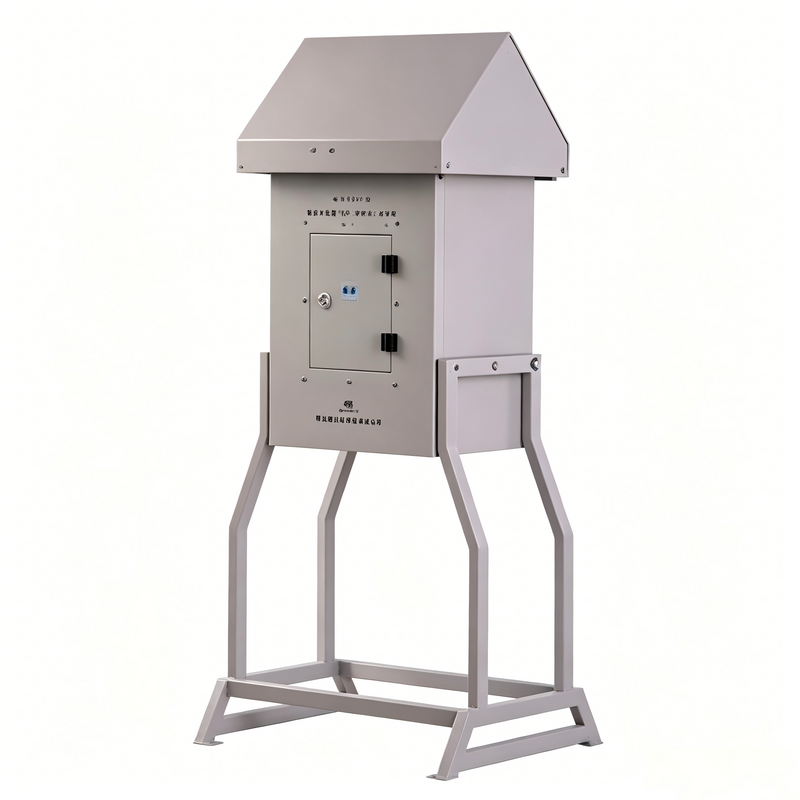

LY-2031 Large Flow Ambient Air Particulate Matter Sampler captures TSP, optional PM10 and PM2.5 in ambient air via the standard filter membrane gravimetric method. Integrated computer control, precision sensors and new material technology, equipped with a reliable brushless DC sampling pump. This professional aerosol monitoring instrument is widely applied in environmental protection, public health, occupational safety, military detection, scientific laboratories and university teaching for routine ambient particulate sampling.
HJ 93-2013 Environmental Air Particulate matter (PM10 and PM2.5)
Sampling device technical requirements and testing methods
HJ/T 374-2007 Technical Requirements and Testing Methods for Total Suspended Particulate Matter Samplers
HJ 618-2011 Determination of PM10 and PM2.5 in Ambient Air-Gravimetric Method
JJG 943-2011 General Suspended Particulate Sampler
Main Features
Instantaneous, timed sampling and various sampling modes such as equal interval can be set
Multi-functional design for TSP and PM10/PM2.5 sampling, featuring a tipping bucket rainproof structure for easy transportation and carrying
The cutter is made of aluminum alloy and has a compact structure to effectively prevent static electricity adsorption
Real-time monitoring of pressure and temperature, automatic compensation of flow deviation, further optimization of flow accuracy
Equipped with brushless DC sampling pump, no spark, low noise, long service life, greatly improve stability, easy maintenance
The dot matrix wide-temperature, high-brightness VFD display features a broad operating temperature range, enabling excellent human-machine interaction.
Automatically calculate the sampling volume and convert it to standard conditions based on air pressure and temperature.
Automatically detect AC power failure, save operation data, and automatically resume sampling after power supply
Sampling is complete. The sampled data is stored according to user requirements and can be queried or printed at any time (optional).
The preset parameters of the last sampling are automatically saved and used in the next sampling; 40 sets of sampling data can be saved for users to query
The built-in electronic tag enables intelligent management of instruments by integrating with the instrument inventory management platform software.
Parameters
Main parameter | Parameter range | Resolution ratio | Scope of parameters |
Sampling flow | (0.8-1.2) m3/min, working point flow rate is 1.05 m3/min | 0.01m3/min | ±2% |
Dwell time | Set within 99 minutes and 59 seconds | 1min | The timing error within 20 minutes should not exceed ±1s |
Inlet temperature | (－55～125)℃ | 0.1℃ | Not exceeding ± 2.5℃ |
Repeatability of flow | — | — | No more than 2% |
Stability of flow | — | — | No more than 5% |
Atmos | (50～130)kPa | 0.01kPa | Not more than ±500Pa |
Effective membrane size | (230×180)mm | ||
PM2.5 cut-off characteristics | Da50=(2.5±0.2)μm σg=1.2±0.1 | ||
PM10 Cutting Characteristics | Da50=(10 ±0.5)μm σg=1.5±0.1 | ||
Dimensions (length × width × height) | 552mm×454mm×1244mm | ||
Weight of the main body | Approximately 29.0kg | ||
