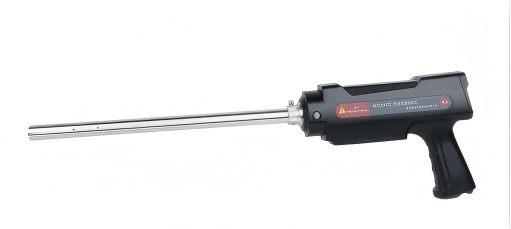

LY-3062 Duct Flow Velocity Monitor is a professional duct gas measuring instrument designed based on the Pitot tube flowmeter principle. It can accurately measure the cross-sectional average flow velocity and synchronously display duct dynamic pressure, static pressure, total pressure, temperature, flow velocity and flow rate. The whole machine adopts Ex ib IIB T4 Gb explosion-proof design, which can work safely in conventional and flammable & explosive hazardous environments. It supports USB data export, Bluetooth printing, built-in explosion-proof lithium battery for long-time operation, widely used in oil depots, chemical industry, mines, industrial pipelines and other occasions.
Adopts standard Pitot tube measurement principle to accurately measure duct cross-sectional average flow velocity with high stability and good repeatability.
Full explosion-proof structure, certified Ex ib IIB T4 Gb, safe for use in flammable, explosive and dangerous gas environments.
Real-time display of dynamic pressure, static pressure, total pressure, temperature, flow velocity and flow rate, one machine completes multi-index detection.
Pressure tapping tube supports switching of different lengths to adapt to various duct sizes and working conditions.
Equipped with USB port for data file export; built-in Bluetooth module can connect to portable printer for on-site data printing.
Built-in 7.4V explosion-proof lithium battery, continuous working time ≥24 hours, lightweight host, easy for on-site mobile detection.
GB 20950-2020 Emission Standard of Air Pollutants for Oil Storage Depots
GB 3836.1-2010 Explosive atmospheres – Part 1: Equipment – General requirements
GB 3836.4-2010 Explosive atmospheres – Part 4: Equipment protected by intrinsic safety “i”
Main Parameters | Range | Resolution | Accuracy |
Flow Velocity | （2～5）m/s | 0.1m/s | Within±10% |
（5~20）m/s | 0.1m/s | Within±5% | |
Atmospheric Pressure | (50 ~ 130) kPa | 0.01 kPa | Not exceeding ±500 Pa |
Dynamic Pressure | (0 ~ 1200) Pa | 1 Pa | Not exceeding ±1.5% F.S. |
Static Pressure | (-30 ~ +30) kPa | 0.01 kPa | Not exceeding ±1% F.S. |
Measured Temperature | (-20 ~ 50) °C | 0.1 °C | Not exceeding ±3 °C |
Data Storage | 9999 sets | ||
Power Consumption | < 3 W | ||
Power Supply | Built-in 7.4 V explosion-proof lithium battery | ||
Weight (Main Unit) | Approx. 1.3 kg | ||
Continuous Operation Time | Not less than 24 hours | ||
Standby Time | Not less than 25 hours | ||
Charging Time | Approx. 3.5 hours | ||
Explosion-Proof Mark | Ex ib IIB T4 Gb |
Oil depots, petrochemical industry
Chemical plants, mines with hazardous gases
Industrial boiler ducts, flue pipelines
Explosion-proof required environmental monitoring
Safety inspection, third-party testing
Lonying is a professional environmental monitoring solution provider focused on the needs of industrial clients, with decades of R&D and manufacturing experience in gas detection equipment. Our products feature high reliability, long maintenance cycles, and intuitive intelligent operation interfaces. We provide comprehensive technical training, complete operation and maintenance manuals, and full lifecycle after-sales support, helping enterprise users achieve efficient safety management and environmental compliance monitoring.
FAQs
Yes, it adopts full explosion-proof design with mark Ex ib IIB T4 Gb, safe for flammable and explosive environments.
Yes, built-in Bluetooth can connect to a portable Bluetooth printer for real-time data printing.
Built-in explosion-proof lithium battery supports ≥24 hours continuous operation.
Yes, it can measure flow velocity, flow rate, dynamic pressure, static pressure, total pressure and temperature synchronously.
