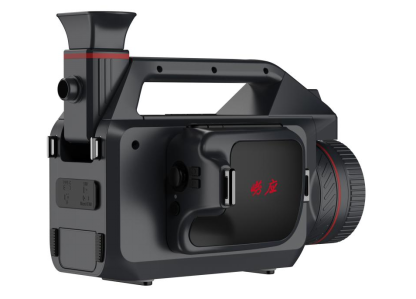

LY-3233 ATEX Cooled OGI Camera is a professional remote non-contact gas leakage imaging instrument equipped with a high-precision cooled infrared detector. It is mainly used for rapid detection and location of VOC gas leakage in hazardous explosive environments. With official explosion-proof certification, high-sensitivity imaging, laser ranging, multiple imaging modes and real-time data synchronization, this camera provides safe, clear and efficient gas leak inspection and on-site evidence collection for petrochemical, environmental supervision, industrial safety and emergency scenarios.
This camera adopts professional explosion-proof design with certification not less than Ex ic nC op is IIC T6 Gc, ensuring safe use in flammable and explosive hazardous environments. It meets strict safety requirements for on-site detection in petrochemical, oil and gas, and chemical plants.
Built with a refrigerated T2SL type II superlattice detector (320×256 resolution) and thermal sensitivity ≤10mK, it delivers ultra-clear infrared imaging for trace gas leakage. The 3.2~3.5μm working band is highly sensitive to VOCs, enabling quick identification of tiny leaks. It supports 1.0X~32.0X continuous digital zoom and focusing (manual/electric/automatic).
It provides IR, visible light, picture-in-picture, dual-light fusion and edge enhancement modes for clearer leak display. Equipped with laser indication and 1.5km laser ranging, 5.5-inch rotatable touch screen, OLED viewfinder, 16MP visible light camera, positioning, recording and voice annotation, making it ideal for on-site law enforcement and evidence collection.
The 270° rotatable handle supports multi-angle observation. It is equipped with HDMI, Type-C and TF card (up to 512G) ports. It can connect with a hydrogen flame ionization detector via wireless transmission to display real-time gas concentration on the same screen. The replaceable battery supports ≥4 hours of field use.
The LY-3233 Cooled OGI Camera fully meets international explosion-proof safety standards and gas imaging detection specifications. Its explosion-proof rating complies with requirements for hazardous area operation. The instrument meets industrial safety and environmental monitoring regulations for gas leakage detection in petrochemical, oil and gas, chemical and other hazardous industries.
Main Parameter | Parameter Range |
Minimum Focus Distance | ≤0.5m |
Camera Lens | The standard lens is 14.5° x 10.8°, and other lenses can be customized |
Digital Zoom | Continuous zoom (1.0X~32.0X) |
Thermal Sensitivity (NETD) | ≤10mK@25℃ |
Frame Rate | 30Hz |
Detector | The refrigerated (T2SL) type II superlattice detector, resolution of 320 x 256 |
Working Band | （3.2~3.5）µm |
Start-up Time | ≤5min |
Measuring Temperature Range | （-20~+350）℃ |
Temperature Measurement Accuracy | ±1°C (below 100 °C), ±2% (> 100 °C) |
Temperature Measurement Mode | Maximum temperature, minimum temperature, central temperature; can track the maximum temperature, Support movable points, lines, and polygon areas, where the highest and lowest temperatures can be set within the area |
Temperature Measurement Correction | Radiation rate, ambient temperature, ambient humidity, distance, atmospheric transmittance correction |
Laser Indication | Level 2, wavelength 635nm, red laser, power 1mw |
Laser Ranging | It has the function of distance measurement, the distance is more than 1.5km, and the distance value can be displayed on the screen |
Touch Screen | Rotatable color touch display 5.5 inches (1920 x 1080 pixels) |
Viewfinder | OLED (1920 x 1080 pixels) |
Visible Light | Built-in 16 megapixel visible light camera |
Color Palettes | There are 12 preset color schemes such as white heat, black heat, iron red and rainbow, and 6 custom color palettes |
Image Mode | Visible light mode, standard infrared mode, dual light fusion mode, edge enhancement mode |
Removable Memory Card | TF card, 512G, expandable, support hot plug and unplug |
Positioning | Location information can be displayed on the screen |
Weight | 2.6kg |
Battery | The built-in lithium battery can be replaced. A single battery can be used for no less than 4 hours at normal temperature |
Charge | Supports direct charging of the main unit and battery charging, and supports dual-position charging with fast charging protocol |
Hand Shank | Rotatable Angle 270° |
Detectable Gases | Methane, Benzene, Toluene, Xylene, Ethylbenzene, Methanol, Ethanol, Ethane, Propane, Butane, Pentane, Hexane, Heptane, Octane, Ethylene, Propylene, 1-Pentene, Isoprene, Butanone, Methyl Isobutyl (Methyl) Ketone, Methyl Isobutyl Ketone, etc |
Target Applications & Industries
This ATEX cooled optical gas imaging camera is widely used in petrochemical, oil and gas, chemical plants, refineries, environmental protection supervision, industrial safety, emergency management, third-party testing and scientific research. It is mainly used for VOC gas leakage detection, pipeline inspection, equipment maintenance, hazardous area monitoring and on-site evidence collection.
Lonying is a professional manufacturer of optical imaging and environmental safety instruments with rich experience in gas leak detection. The LY-3233 camera combines explosion-proof safety, high-sensitivity cooled detection and intelligent operation, widely recognized in global industrial safety projects. We provide professional technical support, calibration service and comprehensive after-sales guarantee to ensure stable operation in harsh environments.
Yes. It has professional explosion-proof certification (Ex ic nC op is IIC T6 Gc) and can be safely used in flammable and explosive places such as petrochemical and oil and gas stations.
It can detect most VOC gases including methane, benzene, toluene, xylene, ethanol, propane, butane, butanone, olefins and other volatile organic compounds.
Yes. It can wirelessly connect with a hydrogen flame ionization detector to synchronize and display real-time gas concentration data on the screen.
