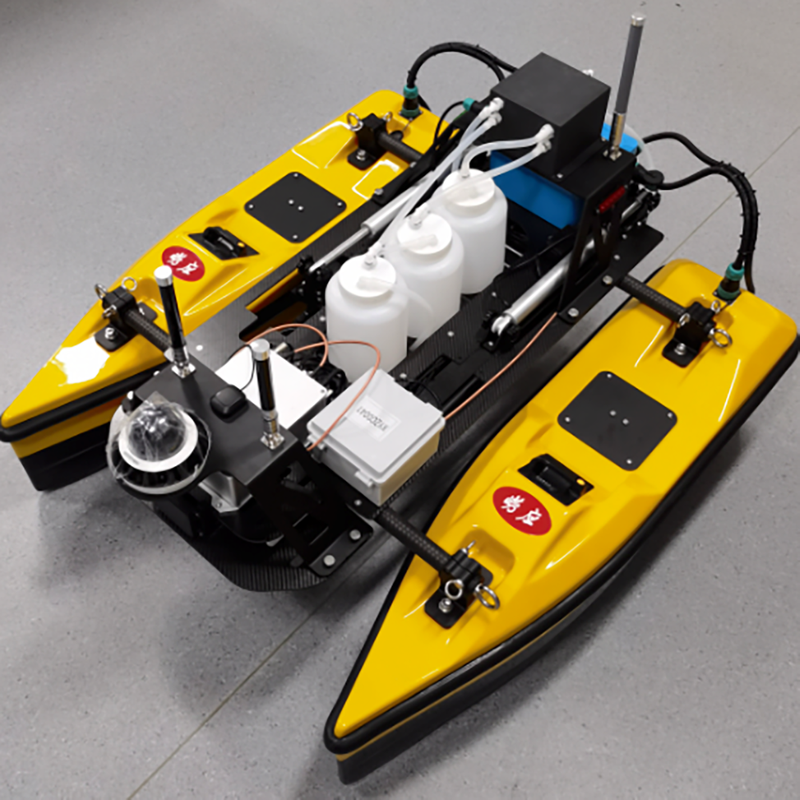

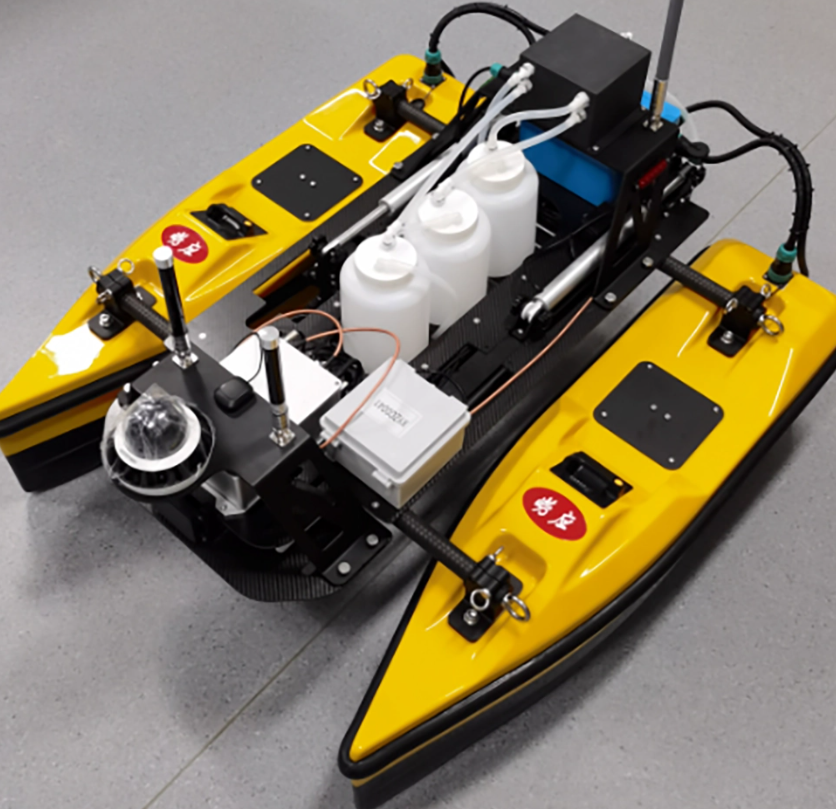

The LY-5040B Intelligent Sampling And Monitoring Unmanned Surface Vehicle (USV) is a professional multi-functional catamaran USV designed for water resource management, environmental monitoring, and hydrological survey institutional users. Featuring a high-stability catamaran hull design and fully modular mission system, this USV can be flexibly integrated with single-beam depth sounders, side-scan sonar, ADCP, water quality monitors, and water samplers. It supports pre-planned sampling routes and high-precision fixed-point sampling, effectively solving industry pain points of long-distance water inspection, in-situ water sampling, and real-time testing in complex waters.
Constructed from new high-strength composite carbon fiber material, this water quality monitoring USV delivers excellent corrosion resistance, wear resistance, impact resistance, and microwave penetration, adapting to harsh water environments. Its modular detachable design, compact size, and light weight allow it to be easily stored in an SUV trunk, solving transportation, handling, and deployment difficulties for field users. The whole unit meets the IP67 waterproof standard, with ducted propulsors featuring anti-clogging (weeds/debris) and impact protection, ensuring stable operation in complex waters. Compared with traditional monohull USVs, its catamaran structure offers superior navigation stability, larger payload capacity, and better adaptability for multi-mission execution in lakes, rivers, and reservoirs.
This multi-functional water sampling USV is equipped with an integrated communication system supporting 2.4GHz and public 4G network (4G optional), with a transmission range of up to 2km in open areas. The communication base station and remote controller are integrated into one device, enabling real-time transmission of USV data, video, and images to the ground control station. Operators can remotely monitor vessel status, adjust operation parameters, and complete mission planning via ground station software compatible with mainstream laptops and tablet computers running Windows 10 or above. The handheld remote controller has a water and dust resistance rating of ≥ IP64, with 1080P HD video transmission and a high-brightness HD display for clear field viewing.
The unmanned surface vehicle for hydrological survey supports both differential steering and servo steering, with real-time USV status display and alarm prompts for full-process operation monitoring. It supports one-stop mission planning for water sampling, hydrological measurement, underwater surveying, and water patrol missions, with automatic return to the starting point upon mission completion. It is also equipped with comprehensive fail-safe features, including automatic return on communication loss and automatic return on low battery, greatly reducing equipment loss risks and ensuring safe operation in remote and complex waters.
The LY-5040B intelligent USV strictly follows relevant water quality monitoring, hydrological survey, and unmanned equipment standards issued by the Ministry of Ecology and Environment of China and the Ministry of Water Resources. It has obtained CPA certification (China Environmental Protection Product Certification), with a design fully compliant with IP67 whole-unit waterproof and IP64 remote controller protection standards, meeting both domestic and international industry compliance requirements for water environment monitoring and hydrological survey equipment.
Parameter | Specification |
|---|---|
Endurance | 3 hours at economic speed (1.5m/s) |
Maximum Speed | Not less than 3.2m/s (under standard displacement) |
Propulsor Motor Type | Brushless DC Motor |
Propulsors | Two ducted propulsors, supporting both differential steering and servo steering. Feature anti-clogging (weeds/debris) and impact protection. Detachable for easy installation and maintenance. |
Battery | 8s22Ah X 2 Lithium Batteries (29.6V), semi-solid state technology, easily detachable and replaceable. |
Parameter | Specification |
|---|---|
Modes | Integrated communication supporting 2.4GHz, public 4G network (4G is optional), 2km range, with integrated communication base station and remote controller |
Data Capabilities | Enables data transmission and monitoring within range, remote monitoring of vessel status and operation, real time transmission of USV data and video /images to the ground station |
Communication Range | Base station range ≥ 2km (in open areas) |
Hardware Configuration | Compatible with mainstream laptops / tablet computers (optional) |
Base Station OS | Windows 10 or above |
Base Station Software | Supports USV mission management, route planning, status display, data management logging, and other functions |
Handheld Remote Controller | Water and dust resistance rating ≥ IP64, 2 joysticks, weight ≤ 1 kg; 1080P HD video transmission, high-brightness HD display for video viewing, abundant ground interface ports |
This intelligent water sampling USV serves a wide range of institutional and industrial users, including water resource management departments, environmental protection bureaus, hydrological survey institutions, ecological research institutes, marine monitoring agencies, and urban water management departments. Its core application scenarios include large-scale water patrol and routine monitoring, pollution source tracking and emergency monitoring in pollution spills or algal bloom events, sampling operations in high-risk complex waters, underwater topography and hydrographic surveying, scientific research and ecological investigation, marine and coastal zone monitoring, and urban black-odorous water body management.
Lonying is a leading professional supplier of environmental monitoring and water quality sampling equipment for institutional users. Our LY-5040B USV features a fully modular design that allows quick replacement of mission modules or simultaneous operation of multiple systems, fully adapting to diverse field operation needs. We provide comprehensive pre-sales customization consultation, on-site operation training, and full-cycle after-sales maintenance support, with a professional technical team to solve application problems in a timely manner. All our equipment undergoes strict environmental adaptability and performance testing before delivery, ensuring stable and reliable long-term operation in harsh field conditions.
The USV adopts a modular design with three core mission systems: water quality monitoring module, water sampling module, and survey module. It can be flexibly integrated with single-beam depth sounders, side-scan sonar, ADCP, multi-parameter water quality monitors, and automatic water samplers. Modules can be quickly swapped or operated simultaneously to meet diverse mission requirements.
The USV is equipped with multiple safety protection mechanisms, including anti-clogging and impact-resistant ducted propulsors, IP67 whole-unit waterproof design, real-time status monitoring and alarm prompts, as well as automatic return functions for mission completion, communication loss, and low battery, effectively ensuring operation safety in complex waters.
Yes. The USV features a modular detachable design, compact size, and light weight, which can be easily stored in an SUV trunk for convenient transportation. Its simple structure allows single-person rapid deployment in the field, with intuitive ground station software that enables quick mission planning without complex operation training.
