Unmanaged fugitive emissions create severe operational risks across industrial facilities. They trigger heavy regulatory penalties, cause valuable product loss, and introduce significant safety hazards. Modern facilities simply cannot rely on guesswork or visual inspections alone. Rigorous Leak Detection and Repair (LDAR) programs demand highly defensible, quantitative data. Optical gas imaging certainly provides rapid screening capabilities across large areas. However, Flame Ionization Detectors (FIDs) confidently remain the ultimate gold standard. They deliver the precise, quantitative compliance testing required by strict mandates like EPA Method 21.
We will explore how these reliable detectors fit into your daily compliance strategy. You will learn practical frameworks for evaluating and deploying FID technology effectively. EHS professionals and plant managers can use this guide to optimize field operations. We provide clear steps to integrate these tools alongside other sensing methods. Ultimately, you will discover how to maintain compliance while streamlining your overall emissions management program.
FIDs provide the precise, parts-per-million (ppm) quantification required for strict regulatory compliance, serving as the quantitative backbone of an LDAR program.
Selecting a Portable FID Detector requires balancing battery/fuel logistics against the need for continuous, shift-long data logging.
Modern LDAR programs increasingly use a hybrid approach, combining OGI Gas Camera technology for rapid leak detection with FIDs for targeted quantification.
Evaluating Industrial Monitoring Solutions must factor in calibration gas consumption, maintenance downtime, and data integration capabilities.
Regulatory bodies take fugitive emissions incredibly seriously. State and federal agencies strictly enforce environmental laws. EPA Method 21 outlines specific mandates for measuring volatile organic compounds. It requires facilities to quantify leaks using highly precise instruments. FIDs meet these stringent criteria perfectly. They measure gas concentrations down to parts per million. This extreme precision ensures you meet exact legal thresholds safely. You avoid costly fines by strictly following these standardized testing methods. You also protect your surrounding community from hazardous air pollutants.
Auditors expect undeniable proof of ongoing compliance. They meticulously review historical logs during site visits. They look for suspicious patterns or missing data points. FID data logs provide this essential evidence reliably. They establish a robust, unshakeable baseline for component health. We use this data to track physical degradation over time. The logs also confirm successful repair verification immediately. You can prove a valve no longer leaks after maintenance. Digital records eliminate manual entry errors entirely. They protect your facility during surprise inspections.
We must acknowledge some standard assumptions regarding FIDs. These detectors accurately measure most hydrocarbon gases encountered. They burn the sample gas directly in a hydrogen flame. This combustion process generates measurable ions continuously. However, chemical response factors vary significantly by specific gas. Methane serves as the universal reference gas globally. If you monitor different chemical streams, you must apply specific correction factors. Operators must establish careful calibration protocols routinely. You cannot treat every reading as an absolute value without this mathematical adjustment.

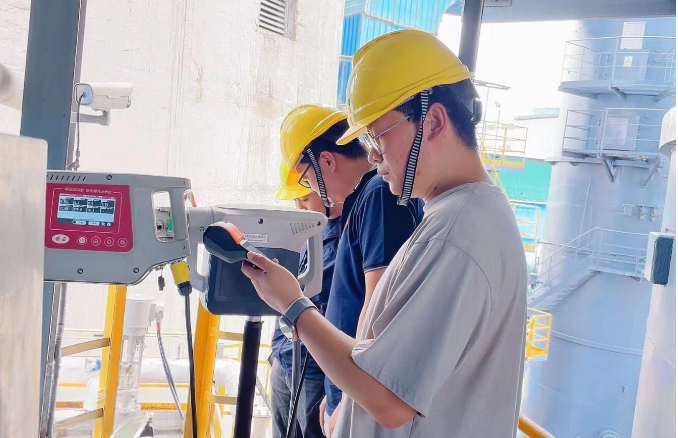

Facilities contain thousands of potential leak points. Identifying these leaks requires systematic testing. The primary flame ionization detector applications involve component-level leak quantification. Technicians test valves, flanges, pumps, and compressors directly. They place the sample probe exactly at the potential leak interface. This method captures the highest concentration of escaping gas. FIDs process this sample instantly. They display real-time ppm values on the screen. You immediately know if a component exceeds allowable regulatory limits.
Maintenance teams rely heavily on repair verification. Finding a leak is only the first step. You must fix the component and prove the repair worked. Technicians use FIDs to quantitatively confirm success. They retest a replaced packing or tightened flange. The detector verifies the concentration has dropped below the regulatory leak threshold. This step closes the LDAR loop definitively. It ensures maintenance efforts actually solve the underlying problem. You cannot assume a tightened bolt stops a microscopic gas leak. Only a verified ppm reading provides true confidence. It protects the mechanic from having to repeat the work later.
Modern facilities deploy multiple sensor networks. FIDs integrate seamlessly with broader VOCs Monitoring Equipment. Stationary units monitor ambient air continuously. They provide fence-line monitoring for overall site emissions. Portable units complement these stationary systems. They allow targeted, localized investigations when area sensors alarm. We use fixed sensors to detect regional spikes. We then deploy handheld FIDs to pinpoint the exact source. This integration creates a comprehensive, multi-layered safety net.
Common components requiring routine FID screening include:
Pressure relief valves protecting vital process vessels.
Flanges connecting high-pressure piping segments together.
Pump seals handling highly volatile liquid hydrocarbons.
Compressor shafts subject to extreme, continuous vibration.
Selecting the right hardware impacts daily productivity significantly. A Portable FID Detector must balance analytical power and user comfort. Form factor and ergonomics play a massive role. Technicians operate these devices for entire twelve-hour shifts. Analyzing the physical toll of shift-long operation is crucial. Heavy equipment causes severe fatigue and reduces testing accuracy. We must compare backpack models against handheld configurations. Backpacks distribute weight evenly across the shoulders. Handhelds offer better maneuverability in tight spaces. They fit easily between complex piping racks. You must evaluate your specific facility layout to choose correctly. Elevated platforms might require lightweight handhelds. Ground-level tank farms might suit a backpack configuration perfectly.
Fuel logistics present a unique operational reality. FIDs require high-purity hydrogen gas to maintain their internal flame. Managing these cylinders in a field setting requires strict safety protocols. You must plan for safe storage and secure transport. Operators carry pressurized hydrogen directly into hazardous areas. Therefore, intrinsic safety certifications are absolutely non-negotiable. The device must never act as an ignition source. You must ensure your teams handle fuel refills safely and efficiently.
Modern compliance relies entirely on accurate record-keeping. Data logging and software integration streamline this entire process. The best devices feature reliable Bluetooth connectivity. They offer automated route-mapping to guide technicians efficiently. Readings sync directly to central LDAR database software. Popular platforms like LeakDAS or Guideware accept these digital feeds instantly. This eliminates messy paper logs entirely. It prevents transcription errors completely. You save hours of administrative work every single week.
Implementation risk remains a significant factor in deployment. Untrained operators frequently cause frustrating device flame-outs. They might record false readings by moving the probe too quickly. They might fail to perform required daily drift checks. We place heavy emphasis on required training overhead. Your program only succeeds if your technicians understand the equipment deeply. You must invest in comprehensive, hands-on training sessions.
Best practices for consistent field operation:
Perform a detailed visual inspection of the probe assembly before starting the route.
Execute mandatory zero and span calibrations strictly in a clean-air environment.
Maintain a consistent probe movement speed around all component interfaces.
Monitor the hydrogen fuel gauge frequently to prevent unexpected mid-shift flame-outs.
We must clearly recognize the limitations of a standalone FID strategy. Component-by-component testing is inherently time-intensive. Technicians physically touch thousands of valves every single month. This bottleneck slows down the entire compliance schedule dramatically. It requires massive labor hours to execute properly. Facilities often struggle to complete their monitoring routes on time. They fall behind schedule due to the sheer volume of components.
Optical gas imaging changes this dynamic entirely. The OGI advantage provides incredible speed and clear visibility. You can use an OGI Gas Camera to scan large process areas. It allows operators to view invisible gas plumes visually. You can quickly scan hundreds of components from a safe distance. Large leaks become instantly apparent on the camera screen. This technology identifies the biggest emission sources immediately. You stop wasting time on perfectly sealed valves.
The most effective programs utilize a synergistic workflow daily. They combine both technologies for maximum operational efficiency.
Step 1: Screen. Technicians use the OGI camera for quick identification. They sweep entire process blocks rapidly. They tag any component showing a visible gas cloud.
Step 2: Quantify. Technicians return to the tagged components with their FIDs. They measure the exact ppm concentration carefully. They log this critical data for compliance purposes.
This hybrid approach dramatically improves your field efficiency. It reduces wasted labor hours significantly across the plant. Technicians no longer test thousands of leak-free components manually. They focus their FID efforts only on known leakers. This strategy maintains strict regulatory adherence comfortably. You achieve faster route completion times consistently. You repair major leaks much sooner.
Technology Type | Primary Function | Testing Speed | Data Output | Regulatory Status |
|---|---|---|---|---|
Optical Gas Imaging | Rapid Area Screening | Very Fast (Hundreds per hour) | Visual Plume Video | Alternative Work Practice |
Flame Ionization Detector | Precise Quantification | Slow (Component by component) | Exact PPM Values | EPA Method 21 Standard |
Procuring the right equipment demands careful evaluation. These instruments represent a critical piece of your compliance puzzle. You must look far beyond the initial brochure specifications. Evaluating these advanced systems requires a practical understanding of harsh field conditions. Equipment fails quickly if it cannot handle the environment. You must plan for ongoing operational realities.
Ruggedness and Ingress Protection are absolute necessities. Devices operate in harsh downstream oil and gas facilities. Chemical processing environments destroy fragile electronics quickly. You must demand high IP65+ ratings from your suppliers. This protects the internal sensors from dust and driving rain. Furthermore, intrinsic safety approvals are mandatory. Look for ATEX Zone 1 or Class 1 Div 1 certifications. These ratings guarantee the device will not ignite surrounding explosive vapors. You protect your personnel by demanding these safety standards.
Vendor support dictates your program's long-term success. Device downtime severely threatens your compliance schedule. You must evaluate vendors on their local service availability. Ask about their standard calibration turnaround times. A broken detector cannot sit in a repair shop for weeks. The best suppliers offer immediate hot-swap programs. They send a replacement unit while yours undergoes maintenance. This keeps your field teams working without interruption.
Base your shortlisting logic on facility-specific needs. Analyze the specific mix of gases present on-site. Ensure the manufacturer provides accurate response factors for those chemicals. Consider the overall scale of your component inventory. Massive refineries need highly automated, route-driven software features. Finally, demand seamless integration with your existing EHS software. The hardware must communicate effortlessly with your current databases. It should simplify your reporting, not complicate it.
Flame Ionization Detectors remain utterly indispensable for accurate emissions management. They deliver the precise, compliant LDAR execution that regulators demand. Managing hydrogen fuel and strict calibration protocols introduces routine operational challenges. However, the resulting defensible data easily justifies this effort. You cannot fake or guess parts-per-million accuracy. You must measure it directly. Deploying a hybrid approach makes this entire process faster and much more efficient.
Decision-makers should take immediate, action-oriented next steps today. First, audit your current route completion times thoroughly. Identify where technicians spend the most hours. Second, assess your software integration readiness immediately. Ensure your existing databases can accept direct Bluetooth uploads. Third, request in-field demonstration trials from your shortlisted vendors. Let your actual operators handle the equipment. Their honest feedback regarding ergonomics and software ease-of-use is invaluable. Upgrade your monitoring program systematically to ensure lasting compliance.
A: Regulators require stringent calibration schedules to ensure data accuracy. Technicians must perform a daily zero and span calibration prior to use. They introduce a known clean air sample, followed by a certified calibration gas. Furthermore, EPA Method 21 guidelines frequently mandate mid-shift drift checks. This ensures the detector maintains its accuracy throughout the working day.
A: No, these detectors cannot measure inorganic gases. FIDs rely entirely on burning carbon-hydrogen bonds within a hydrogen flame. This specific combustion process creates the measurable ions. Therefore, they do not detect inorganic compounds like hydrogen sulfide (H2S), carbon monoxide (CO), or carbon dioxide (CO2). You need different sensor technologies for those specific hazards.
A: FIDs are typically calibrated using methane as the standard reference gas. However, different volatile organic compounds burn differently. When measuring other chemicals, the raw reading is inaccurate. You must apply a published response factor to calculate the true concentration. This mathematical correction ensures your recorded data reflects the actual leak severity accurately.
A: Yes, they are highly safe if specified correctly. The devices must carry strict intrinsic safety certifications. Look for specific ATEX, UL, or CSA ratings. These approvals guarantee the electrical components and the internal hydrogen flame will not ignite surrounding flammable vapors. Always verify the device matches the specific hazardous zone classifications of your facility.
