Industrial and environmental monitoring has rapidly moved away from slow laboratory chromatography. Modern operations demand high-speed, field-ready data collection. Standard flame ionization detectors simply lack the response time necessary for tracking transient emissions. They struggle during high-speed process control and rapid leak detection. Relying on slow sensors leads to delayed data, hidden emission spikes, and serious compliance risks. You need sensors capable of capturing split-second changes in gas concentrations.
This article deconstructs the mechanics of a fast flame ionization detector. We outline critical evaluation criteria for hardware selection. We also define how you can integrate these rapid-response instruments into your environmental compliance or process monitoring infrastructure. By the end, you will understand the hardware nuances separating basic analyzers from high-frequency tools. You will also learn how to deploy them safely in volatile industrial environments.
Fast FIDs utilize optimized sample capillary systems and specialized chamber designs to achieve millisecond response times.
They are critical for real-time applications, functioning effectively as a CH4 NMHC Analyzer or continuous VOCs Monitor.
Evaluating a Portable THC Analyzer FID requires balancing response speed with field realities like hydrogen fuel logistics and ATEX compliance.
Combining Fast FIDs with complementary optical technologies yields a more comprehensive leak detection and repair (LDAR) strategy.
Understanding high-speed detectors requires a look at the baseline mechanism. A standard flame ionization detector measures organic compounds by burning them. The instrument injects the sample gas into a hydrogen-air flame. This intense heat breaks carbon-hydrogen bonds. The combustion process produces carbon ions and free electrons. Two electrodes inside the chamber apply a polarizing voltage across this flame. The ions migrate toward the collector electrode. This movement creates a minute electrical current. The system measures this current, which is directly proportional to the total carbon mass in the sample.
A fast flame ionization detector operates on this exact chemical principle. However, it completely re-engineers the physics of gas delivery. Standard FIDs push samples through long chromatography columns. Gases separate slowly. They arrive at the flame in delayed, drawn-out peaks. Fast FIDs eliminate these transit delays. They use direct capillary injection. The sample travels straight from the probe into the combustion zone.
Chamber optimization is the second major differentiator. Traditional chambers have significant dead volume. Dead volume allows incoming gases to swirl and mix before burning. This mixing smears the electrical signal. A fast FID minimizes this internal geometry. The gas hits the flame instantly. Furthermore, high-speed instruments require upgraded electronics. Standard electrometers average out signals over a second or more. A fast FID uses high-frequency electrometers. These process rapid transient spikes without signal attenuation. You get sharp, instantaneous readings.
Despite these upgrades, inherent technical limitations remain. FIDs are completely destructive. The flame incinerates the sample, meaning you cannot recover it for secondary analysis. Additionally, the technology requires strict gas management. You must supply continuous high-purity hydrogen to fuel the flame. You also need synthetic zero-air to provide oxygen without hydrocarbon contamination. Managing these gases dictates much of the operational workflow.
Speed unlocks new analytical capabilities. One primary application is separating methane from non-methane hydrocarbons. Methane often dominates total hydrocarbon readings, but it has lower photochemical reactivity. Regulators often target the non-methane fraction instead. To separate them, manufacturers integrate internal heated catalyst cutters. The sample stream splits. One path bypasses the catalyst to measure total hydrocarbons. The other path flows through the heated cutter. The catalyst oxidizes all heavier hydrocarbons, leaving only methane. The detector compares these two streams. This setup allows the system to function as a highly accurate CH4 NMHC Analyzer.
High-speed FIDs also excel in continuous process monitoring. Industrial facilities generate massive volumes of stack emissions. Solvent recovery systems and thermal oxidizers require constant tuning. Slow analyzers miss sudden shifts in abatement efficiency. You can deploy a fast FID as an in-line VOCs Monitor. It tracks real-time destruction efficiency. When a regenerative thermal oxidizer (RTO) valve switches, volatile concentrations can spike. A fast sensor detects this immediately, allowing automated control systems to adjust airflow instantly.
Data integrity relies entirely on sampling frequency. Standard monitors might sample at 1 Hz (one reading per second). If an emission puff lasts 300 milliseconds, a slow analyzer averages it into the background noise. It misses the spike completely. High-frequency sampling often exceeds 10 Hz. Ten readings per second guarantee you capture transient emission spikes. This high-resolution data prevents hidden compliance violations. Regulators increasingly demand this level of operational transparency.

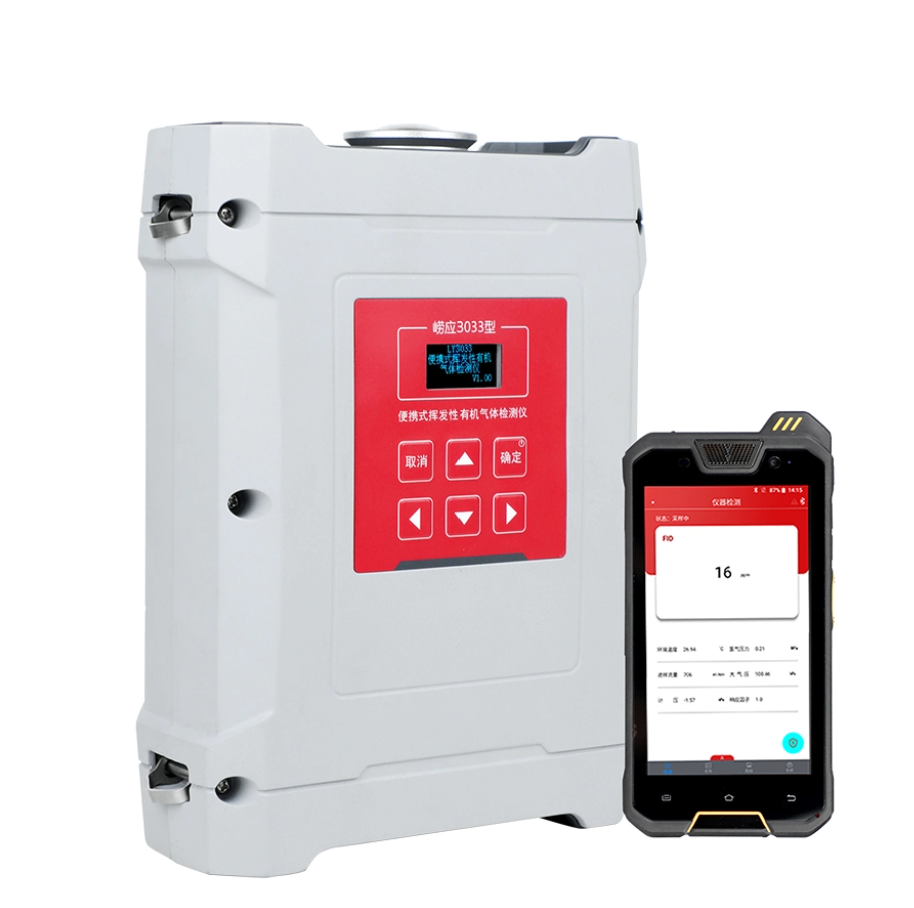

Moving technology from a climate-controlled rack to the field introduces significant engineering challenges. Continuous emission monitoring systems (CEMS) utilize heavy power supplies and large gas cylinders. Walk-through surveys demand mobility. When assessing a Portable THC Analyzer FID, you must balance form factor against analytical performance. Shrinking the detector block cannot compromise signal stability.
Fuel and gas logistics dictate field usability. A flame requires hydrogen. Carrying high-pressure hydrogen cylinders around an industrial plant is dangerous and often prohibited. Modern portable units solve this using metal hydride cartridges. These cartridges store hydrogen at very low pressures within a metal lattice. The system heats the cartridge slightly to release the gas. It is a much safer alternative. You must evaluate how easily field technicians can swap these cartridges mid-shift.
Environmental resilience is another critical factor. Field operations expose analyzers to freezing cold, high humidity, and heavy dust. Internal heating mechanisms are mandatory. Regulatory standards typically require the sample line and detector to be heated to 191°C. This specific temperature prevents high molecular weight hydrocarbons from condensing inside the capillaries. If condensation occurs, it causes persistent background noise and blocks the sample flow. The analyzer must maintain this temperature across varying ambient conditions.
Finally, ergonomics dictate adoption rates. Consider the following criteria when outfitting field technicians:
Battery Life: The unit must support continuous heated operation for at least an 8-hour shift.
Weight Distribution: Backpack or shoulder-strap designs must distribute weight evenly to prevent fatigue.
User Interface: Touchscreens must respond to gloved hands. Displays must be visible in direct sunlight.
Data Logging: The device should automatically tag readings with GPS coordinates and timestamps.
Introducing an active flame into an industrial facility requires strict safety protocols. Many environments contain explosive gas mixtures. Operating a hydrogen-fueled device in these zones demands rigorous hazardous area certification. The absolute necessity of ATEX, IECEx, or Class/Div certifications cannot be overstated. Instruments must feature intrinsically safe circuits. These circuits limit electrical energy to prevent spark generation. The combustion chamber itself must feature sintered metal flame arrestors. These arrestors prevent the internal FID flame from flashing back into the external atmosphere.
Even the fastest FID is rarely used in isolation. Modern compliance strategies demand holistic leak detection and repair (LDAR). A fast FID tells you the exact concentration of a gas in parts-per-million. However, it relies on point-sniffing. The technician must physically place the probe directly into the leak path. If the wind shifts, the reading drops. Finding the exact origin of a fugitive emission across miles of piping takes massive amounts of time.
Technology pairing solves this operational bottleneck. Forward-thinking plants pair quantitative FID data with qualitative optical imaging. Operators sweep an area using an ATEX OGI Camera. Optical gas imaging visualizes the invisible gas plume in real-time. The camera shows you exactly which valve or flange is leaking. Once the camera identifies the source, the technician approaches with the fast FID. The FID probes the identified leak and provides the legally required quantitative measurement. This strategy accelerates source identification. It guarantees precise quantification and provides a complete, visual audit trail for compliance officers.
Selecting the right instrumentation requires looking closely at maintenance realities and integration capabilities. High-speed analyzers demand rigorous upkeep. The optimized capillaries that provide millisecond responses are highly sensitive. You must evaluate the frequency of cleaning the flame jet. Heavy particulate loads can clog the microscopic injection nozzle. Review the manufacturer's procedure for replacing capillary filters and servicing the ignition coil. Complex maintenance routines lead to excessive instrument downtime.
Before purchasing, establish a strict shortlisting logic based on process requirements. A fast response time looks great on a specification sheet, but you must define what your specific process actually needs. Evaluate the required analytical range carefully.
Hardware Selection Parameters
Evaluation Criteria | Standard FID Standard | Fast FID Requirement | Operational Impact |
|---|---|---|---|
Response Time (T90) | 3.0 to 5.0 seconds | < 0.2 seconds | Determines ability to catch transient spikes. |
Analytical Range | 10 ppm to 10,000 ppm | 1 ppm to 100,000+ ppm | Ensures the sensor does not saturate during major leaks. |
Sampling Frequency | 1 Hz | 10 Hz to 100 Hz | Impacts data logging volume and signal resolution. |
Data Integration | Analog outputs only | Modbus, Ethernet, Wireless | Facilitates real-time control system feedback. |
System compatibility is your final procurement hurdle. Verify compatibility with existing plant data acquisition and handling systems (DAHS). If deploying the unit as a permanent process monitor, it must communicate flawlessly with your programmable logic controllers (PLCs). Ensure the instrument supports standard industrial protocols like Modbus RTU or 4-20mA analog outputs. Seamless data integration ensures your high-speed readings actually drive automated process improvements.
A fast flame ionization detector is an essential investment in data resolution and compliance security. By stripping away transit delays and optimizing chamber physics, these devices provide true real-time visibility into industrial emissions. Whether distinguishing methane fractions or tracking rapid RTO fluctuations, high-frequency sampling prevents unseen compliance violations. However, this performance requires rigorous adherence to maintenance schedules and safety protocols. The presence of hydrogen fuel demands respect and strict regulatory certification.
Your next step is to conduct a site-specific risk assessment for hydrogen deployment in your target monitoring zones. Map out your classified hazardous areas to determine required ATEX ratings. Finally, request a field trial of shortlisted portable or fixed units. You must verify their response times against your actual plant gas matrices. Real-world testing will confirm if the technology aligns with your operational reality.
A: Standard FIDs may take several seconds to process a sample due to column transit delays. Fast FIDs eliminate this dead volume. They typically respond in milliseconds, often achieving a T90 (time to reach 90% of the final reading) of less than 0.2 seconds.
A: No. By itself, it measures Total Hydrocarbons (THC). It generates a single reading based on total carbon content. It requires a catalyst cutter to separate Methane from Non-Methane Hydrocarbons, or a GC column for specific gas speciation.
A: Hydrogen is highly flammable. Introducing it into industrial environments poses explosion risks. Mitigation requires strict adherence to ATEX certifications, integrated flame-out sensors, automatic gas shut-off valves, and the use of low-pressure metal hydride storage cartridges.
A: Daily zero and span checks are standard practice in compliance monitoring. Field technicians execute these before every shift. Comprehensive multi-point calibrations are performed monthly or quarterly, strictly based on local regulatory methods like EPA Method 21 or EN 12619.
